How to build a tiered plant stand

This diy step by step diy project is about how to build a tiered plant stand. This project is about building a wooden plant stand with two tile supports. If you want to build something easy but in the same time having a modern and exquisite look, make sure you take a look over my project. I managed to build this diy plant stand under 5 $, using common materials and tools.

You should always plan everything from the very beginning, in order to prevent costly mistakes and to save time. If this is your first project, you should read the instructions with attention. Invest in high quality lumber and plywood, as the components will be exposed to bad weather. Protect the components with appropriate paint or stain.

There are a few tips that you should take into account, if you want to get a professional result. Therefore, take accurate measurements and use professional tools when making the cuts or when drilling pilot holes. Align the components at both ends and add waterproof glue to the joints, if you want to create a rigid structure.



Made from this plan

Add-Image



Building a plant stand

Building a plant stand

Building a plant stand



Materials

  • A – 4 pieces of 1×2 lumber – 10 1/4″ long, 4 pieces – 11 3/4″ long FRAMES
  • B – 1 piece of 1×6 lumber – 10 1/4″ long SUPPORTS
  • C – 4 pieces of 1×2 lumber – 32″ long TRIMS



Tools

  • Safety gloves, glasses
  • Miter saw, jigsaw, pocket hole jig
  • Chalk line, tape measure, spirit level, carpentry pencil
  • Drill machinery and drill bits



Tips

  • Use a good miter saw to make the angle cuts
  • Drill pilot holes before inserting the screws



Time

  • One Day



Related





Two tier plant stand plans

Building the frames

Building the frames

Cut the components out of 1×2 lumber. Drill pocket holes at both ends of the short components and insert 1 1/4″ screws after making sure the corners are right-angled.

Attaching the tile supports

Attaching the tile supports

Cut the supports out of 1×2 lumber and drill pocket holes at both ends. Fit the supports to the frame and lock them into place with 1 1/4″ screws.

Attaching the legs

Attaching the legs

Attach the 1×2 legs to the frames, as shown in the diagram. Make sure the corners are right-angled and adjust the distance between the tops to suit your needs.





How to build a tiered plant stand

Tiles-for-plant-stand-top

Tiles-for-plant-stand-top

The first step of the project is to select the tiles for the tops. I chose two rectangular tiles for each top, that describe a 10″ square.

Cutting-the-components-for-the-frame

Cutting-the-components-for-the-frame

Make sure you cut the components for the frames out of 1×2 lumber. Leave about 1/8″ around all edges as a clearance gap. Drill pocket holes at both ends of the short components, as shown in the diagram.

Building-the-frames

Building-the-frames

Use several clamps to lock the frames together. Make sure the corners are right-angled. Insert 1 1/4″ screws to lock the components together tightly. Add waterproof glue to the joints.

Fitting-the-tile-supports

Fitting-the-tile-supports

Next, fit the frames around the tiles. Drill pocket holes at both ends of the 1×2 supports. Attach the supports to the back of the tiles, as shown in the image. Insert 1 1/4″ screws to secure the supports to the frames, as shown in the diagram.

Frames-for-the-plant-stand

Frames-for-the-plant-stand

After you turn the frames upside down, they should look similar to this one. Repeat the process for the other plant stand frame, using the same instructions described above.

Attaching-the-legs

Attaching-the-legs

Attaching the 1×2 legs to the top and bottom frames is a tricky step, as it require accurate measurements. Mark the middle to the top of the legs and to the four sides of the frames. Then, align the marks with great care.

Corner-detail

Corner-detail

Use a carpentry square to make sure the corners are right-angled. Drill pilot holes through the frames and insert 1 1/4″ screws into the legs.

Fitting-the-legs

Fitting-the-legs

Repeat the process for the bottom frame. Check if the corners are square and insert 1 1/4″ screws.

Securing-the-legs-to-the-plant-stand

Securing-the-legs-to-the-plant-stand

Fit the 1×2 legs to the other sides of the tiered plant stand. Work with attention and leave no gaps between the components.

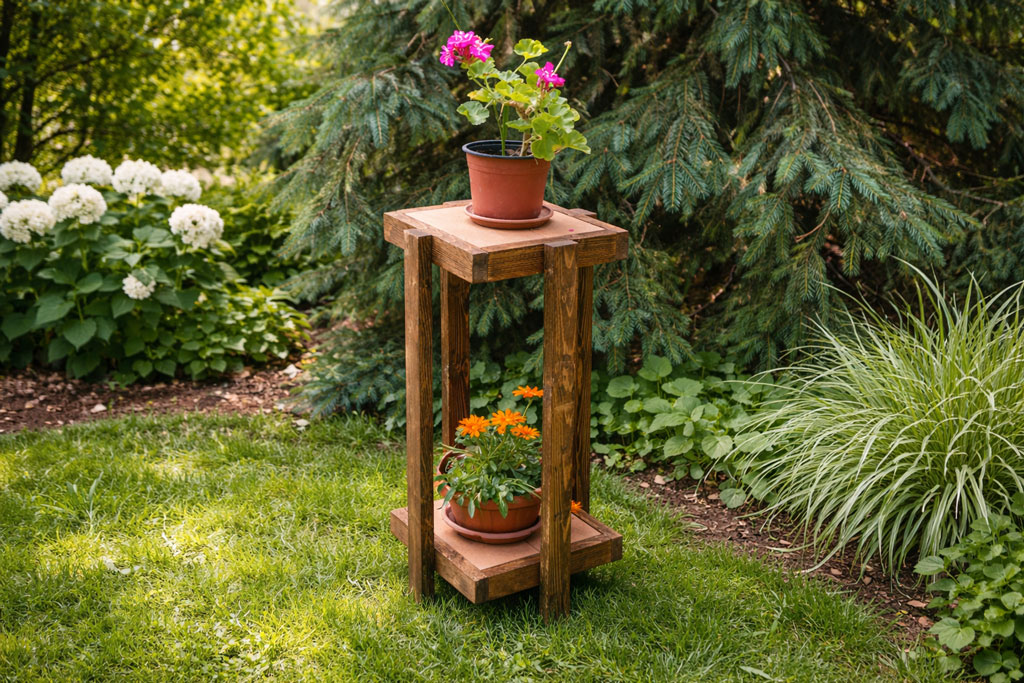

Two-tier-plant-stand

Two-tier-plant-stand

After assembling all the components together, the two tier plant stand looks quite interesting. Smooth the components with 120-200 grit sandpaper.

Tiered-Wooden-Plant-Stand

Tiered-Wooden-Plant-Stand

Stain the plant stand, making sure the product is recommended for outdoor use. Apply a few coats to get an uniform appearance.

Wooden-Plant-Stand-Plans

Wooden-Plant-Stand-Plans

Fit the tiles to the plant stand and enjoy the project.

How-to-build-a-tiered-plant-stand-with-tile-top

How-to-build-a-tiered-plant-stand-with-tile-top

The plant stand seen from another angle emphasizes the modern and sleek look.

Plant-Stand-with-Tile-Top

Plant-Stand-with-Tile-Top

I hope you enjoyed this this step by step tutorial and you should take a look over the rest of my projects. I would love to hear your feedback and to see your pins, likes and shares. If you build this diy plant stand don’t forget to send a few pics. See more outdoor plans HERE.





Thank you for reading our project about how to build a tiered plant stand and we recommend you to check out the rest of the projects. Don’t forget to SHARE and LIKE our projects with your friends, by using the social media widgets, if you want to help us keep adding free woodworking plans.
