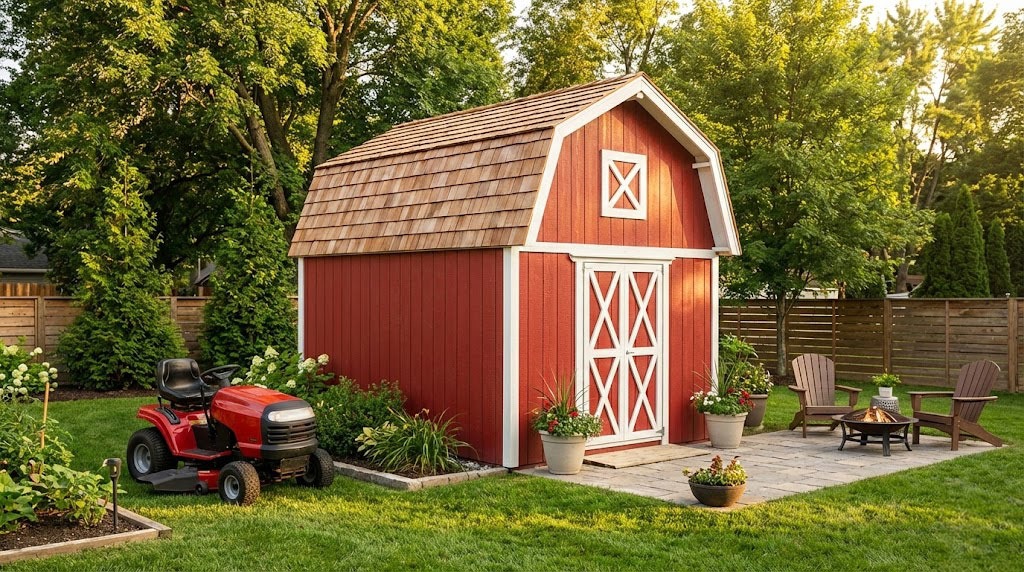

This diy step by step article is about barn shed plans free. If you need a shed with a traditional gambrel roof, but you don’t afford to buy an expensive kit or to hire a qualified team of builders, you could keep the expenditures at a decent level and undertake the project by yourself. A barn has a rustic appearance but it also provide a significant storage space, being ideal to deposit tools and other items you don’t use on a regular basis. In this article, we show you how to build a simple shed with a gambrel roof, using common tools, materials and techniques. See how to build a barn shed with loft HERE. PDF downloadable plans, for this project, with premium features in the Store.

Before starting the project, you have to consult the legal requirements, otherwise you might not comply with the building codes. Therefore, you should remember that there is a certain distance you should leave from the shed up to the property line or a standard depth of the concrete footings, according to the area where you leave. Apart from respecting the legal requirements you should understand that you construction will also be durable.

If you want to build a permanent construction, you should pour a concrete slab and attach the construction to it. On the other hand, if you want a light construction and you plan to move it in the foreseeable future, we recommend you to place several concrete footings and 4×4 skids. In addition, if you won’t deposit heavy items in the barn shed, using the skids is a good way to keep the total costs under control. See all my Premium Plans in the Shop.



Made from this plan

Add-Image



In order to build a barn shed, you need the following:

Materials

  • A – 9 pieces 2×4 lumber 93” long, 2 pieces of 2×4 lumber 120” long JOISTS
  • B – 80 sq ft 5/8” plywood sheets FLOOR DECKING
  • C – 2×4 lumber WALL STUDS AND PLATES
  • D – 2×4 lumber TRUSSES
  • E – 250 sq ft of 5/8 grooved plywood EXTERIOR SIDING
  • F – 140 sq ft of 1/2 tongue and groove ROOFING SHEETS
  • G – 140 sq fit of tar paper ROOFING FELT
  • H – 140 sq ft of asphalt shingles ASPHALT SHINGLES
  • I – 5/8” plywood, 1×4 lumber and 4 hinges DOUBLE DOOR
  • J – 1×4 lumber TRIMS



Tools



Tips

  • Lay the carport properly, using batter boards and string
  • Pre-drill holes in the wooden components, before driving in the screws
  • Align the components before locking them into place with screws
  • Don’t use lumber that is likely to crack or shrink



Time

  • Two weekends





Barn Shed Plans Free

Gambrel shed plans

Gambrel shed plans



Building a barn shed is a fun project, as it is a great opportunity to learn new woodworking techniques and to build a beautiful rustic construction. As you can see in the image, you just need to join the components together, provide you choose the right plans for your needs.

Smart Tip: You could adjust the size of the gambrel shed according to your needs, but you should remember that you have to choose the right plans for your needs. Plan everything from the very beginning, if you don’t want to face unexpected issues.





Gambrel Shed Plans

Anchoring the post into concrete

Anchoring the post into concrete



There are many types of foundation you could use when building a shed, starting with a sturdy concrete slab up to using skids. While the fist solution is ideal for permanent constructions, the second alternative is recommended if you want to move the shed.

Therefore, you have to place the skids on concrete footings, as in the image. For extra rigidity, you could dig 2′ deep holes, fill them with concrete and install appropriate anchors.



Building the floor of the barn shed

Building the floor of the barn shed



Afterwards, you have to build the floor frame of the shed, using 2×4 or 2×6 (if you will store heavy items in the shed) joists. Place the joists every 16” on center.

Smart Tip: Align the joists properly at both hands, checking for squareness. Drive 4” screws trough the rim beams in the joists, after drilling pilot holes. Leave at least 1” from the edges of the components, to prevent wood from splitting.



Installing the plywood sheets

Installing the plywood sheets



Next, you have to attach the 5/8” plywood sheets into place and secure them with decking screws or nails. Make sure you drive in the nails every 10”, along the rim beams and joists. The corners of the sheets should overlap perfectly over the floor frame.

Alternatively, you could also install 2×4 decking, if you want to obtain a more traditional appearance. Place a nail between the boards, to get consistent gaps.



Barn Shed Wall Plans

Barn Shed Wall Plans



The next step is to build the walls of the barn shed on the ground, and to secure them into place. Therefore, you have to build the side walls from 2×4 lumber, making sure you place the wooden studs every 24” on center.

Smart Tip: Align the wall at both ends, plumb it with a spirit level and lock it tightly with 2×4 braces. Next, drive in 6” nails (12d) or screws trough the bottom plate, in the rim beams and joists.



Installing the walls of the shed

Installing the walls of the shed



Continue the project by installing the opposite wall, in the same manner described above. Work with great care and good judgement, if you want to obtain a professional result.

Remember that you don’t have to remove the braces before installing the front and the back walls. If you want to install a side window, now it’s the time to adjust the wall frame accordingly. Make sure you install a double header and a trim stud, to secure the windows properly.



Building the back wall

Building the back wall



Measure the size between the two side walls and build the back wall frame, using 2×4 lumber. Place the wall properly and ask somebody else to hold it, while you insert the 6” nails trough the bottom plate.

Smart Tip: In addition, you have to drive in 6” nails trough the 2×4 studs in the side walls, every 10”, to make the corner joints of the shed as rigid as possible.



Front wall plans

Front wall plans



As you can see in the image, you have to take into account several things when building the frame, such as leaving enough space for the door opening, reinforcing the frame and installing a double header. Don’t forget that you could adjust the width of the door opening according to your needs. Plumb the wall frame before installing it, by using 6” screws / nails.

Smart Tip: You could cut the bottom plate of the door opening, for a better access in the barn.





Barn Shed Roof Plans

Barn shed roof plans

Barn shed roof plans



The key of this complex step is to cut the rafters at the right angles and to join them together properly. Drive in 4” nails trough the rafters in the top plate, making sure the trusses are level.

Smart Tip: The trusses have only two components, therefore once you cut them accurately, you just have to build the rest of rafters similarly. Ensure the all trusses are exactly the same, otherwise you won’t be able to install the roofing sheets.



Gambrel Roof Plans

Gambrel Roof Plans



After you have cut all the rafters, you should lock them together using 1/2 plywood gussets. The gussets don’t have to be too large, otherwise they might affect the design of the barn shed.

Therefore, you should things simple and build gussets about 4” on each side of the joints. Lock them into place by inserting galvanized nails. In addition, install another truss, in order to get 10” overhang on the front end of the barn.



Installing the exterior siding

Installing the exterior siding



Afterwards, you have to install the 5/8” grooved exterior siding into place with 1 1/4 nails, along the walls studs, top plate and bottom plate. Cut the siding with a reciprocating saw, making sure the blade is sharp, otherwise it might tear the edges.

Smart Tip: As you can see in the image, the siding should overhang the bottom plate, in order to obtain a nice appearance and a proper insulation of the barn shed.



Roofing Sheets

Roofing Sheets



Continue the building process, by installing the 1/2 tongue and groove plywood and securing the sheets with nails. Align the plywood sheets at both ends and lock them into position with galvanized nails, along the rafters.

Smart Tip: Work with great care and attention, if you want to get the job done as a professional. In addition, we recommend you to install tongue and groove plywood, as the boards connect easier.



Installing the asphalt shingles

Installing the asphalt shingles



It is essential to install the drip caps properly, as well as the roofing felt. Therefore, the bottom drip caps should be installed under the roofing felt, while the drips caps placed along the sides of the roof should be placed over the tar paper.

The tar paper should overlap 2-4”, to protect the roof from water. Install the shingles starting with the bottom of the roof. The shingles should overhang the drip caps 1/2”, to drain the water properly.



Installing the trims

Installing the trims



After you have attached the 3 tab shingles into place, you have to install the 1×4 trims. As you can see in the image, there are many design patterns you can apply, but you should choose the ones that fit your needs and tastes properly.

Smart Tip: In order to obtain a nice appearance, you have to insert 1 1/4” trough the trims. If you want a simple appearance, you could not install the trims, therefore it is a matter of tastes.



Building the doors of the barn

Building the doors of the barn



Building the double doors of the gambrel shed is a straight forward job, if you use the right materials and techniques. In order to obtain a smooth transition between the barn shed and the double doors, you should use the 5/8” grooved plywood.

After you build the double doors, you have to attach it to the barn, by using four hinges. Attach several x-shaped trims, to enhance the traditional look of the barn.



Barn shed plans

Barn shed plans



Seal the gaps with a waterproof filler and smooth the surface with a sander. Afterwards, you should apply several coats of varnish or protective paint, in order to prevent serious water damage or wood decay.

If you follow the basic guidelines and use the right plans and technique for your needs, you should get the job done like a professional. Afterwards, you could use the barn shed according to your needs and wishes.



10x12 Barn shed plans free

10×12 Barn shed plans free



Make sure you take a look over the rest of the barn projects, as there are so many ideas to choose from when building a shed. See the step by step project with detailed diagrams and a complete cut list HERE. PDF downloadable plans, for this project, with premium features in the Store.





Thank you for reading our article about barn shed plans and we recommend you to read the rest of our projects. Don’t forget to share our articles with your friends, by using the social media widgets.
